CCSA/CCSB/CCSD/CCSE

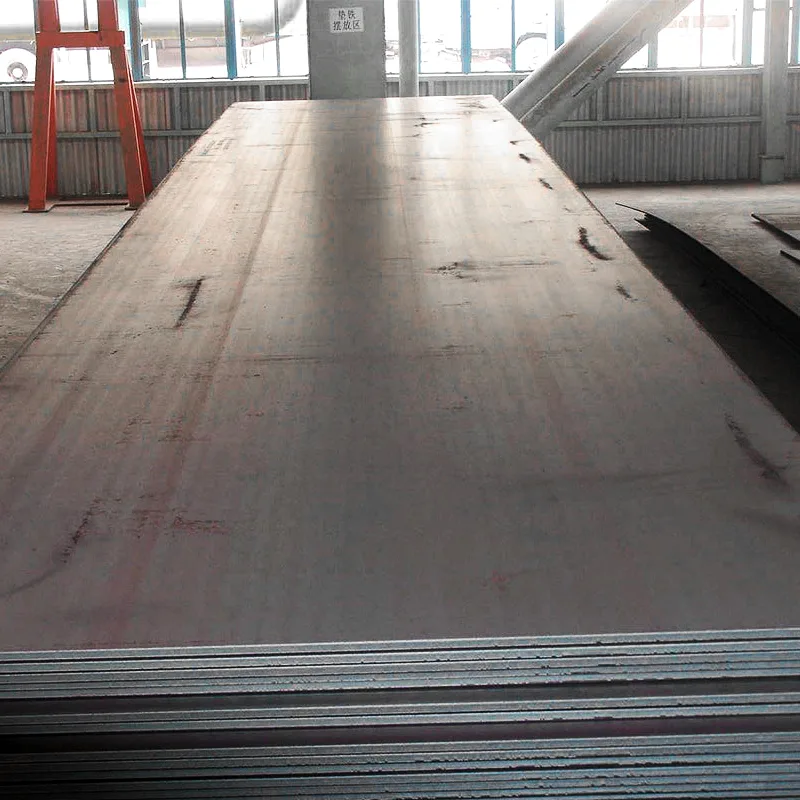

CCS Series Shipbuilding Steel Plates

Product Overview
CCS series shipbuilding steel plates (CCSA, CCSB, CCSD, CCSE, and high-strength grades like CCS DH36/FH36) are certified by the ​China Classification Society (CCS), designed for marine engineering and shipbuilding. These plates excel in ​high tensile strength, weldability, and corrosion resistance, meeting rigorous international standards for hulls, decks, offshore platforms, and critical marine structures

​Key Features

1. ​Grades & Applications
   • ​CCSA/CCSB/CCSD/CCSE: Ordinary-strength grades for general ship components.
     • ​CCSA: Basic grade for inland vessels and boiler pipes (Yield: ≥235 MPa, Tensile:（400–520 MPa)
     • ​CCSD: Enhanced toughness for polar ships (-40℃ impact resistance)
   • ​High-Strength Grades (e.g., CCS DH36/FH36):
     • ​CCS DH36: Used in large container ships and offshore platforms (Yield: ≥355 MPa, Tensile: 490–620 MPa)
     • ​CCS FH36: Ultra-low-temperature applications (-60℃ impact test)

1. Heat Treatment & Processing

   • ​Options: Normalizing, quenching, tempering, or hot-rolled
   • ​Surface Treatment: Shot blasting, galvanizing, or oil coating

​Applications

• ​Shipbuilding: Hulls, decks, bulkheads, and LNG carrier components
• ​Offshore Engineering: Oil rigs, drilling platforms, and subsea pipelines
• ​Industrial Use: Pressure vessels, bridges, and high-temperature fluid transmission systems

​Certification & Quality Assurance

• ​CCS Factory Certification: Validated by China Classification Society (e.g., Beigang Jinya Steel’s 304 stainless steel approval)
• ​Testing: Ultrasonic inspection, Z-direction tests, and Charpy V-notch impact tests

​Packaging & Global Supply

• ​Packaging:
  • Bulk for large plates; steel-strapped bundles for smaller sizes.
  • Anti-rust paper and wooden pallets for corrosion protection
• ​Supply Cases:
  • ​TJC Steel: Supplied 4,000MT CCS DH36 plates to Singapore shipyards
  • Customized dimensions: Thickness 2–350mm, Width up to 4,800mm

​Why Choose CCS Shipbuilding Plates?

• ​Compliance: Aligns with ABS, BV, DNV, and LR standards
• ​Durability: Optimized for extreme temperatures and corrosive marine environments‍
• Flexibility: Tailored sizes and heat treatment per project requirements

Contact us for technical datasheets or customized solutions. Certified quality, delivered globally.
